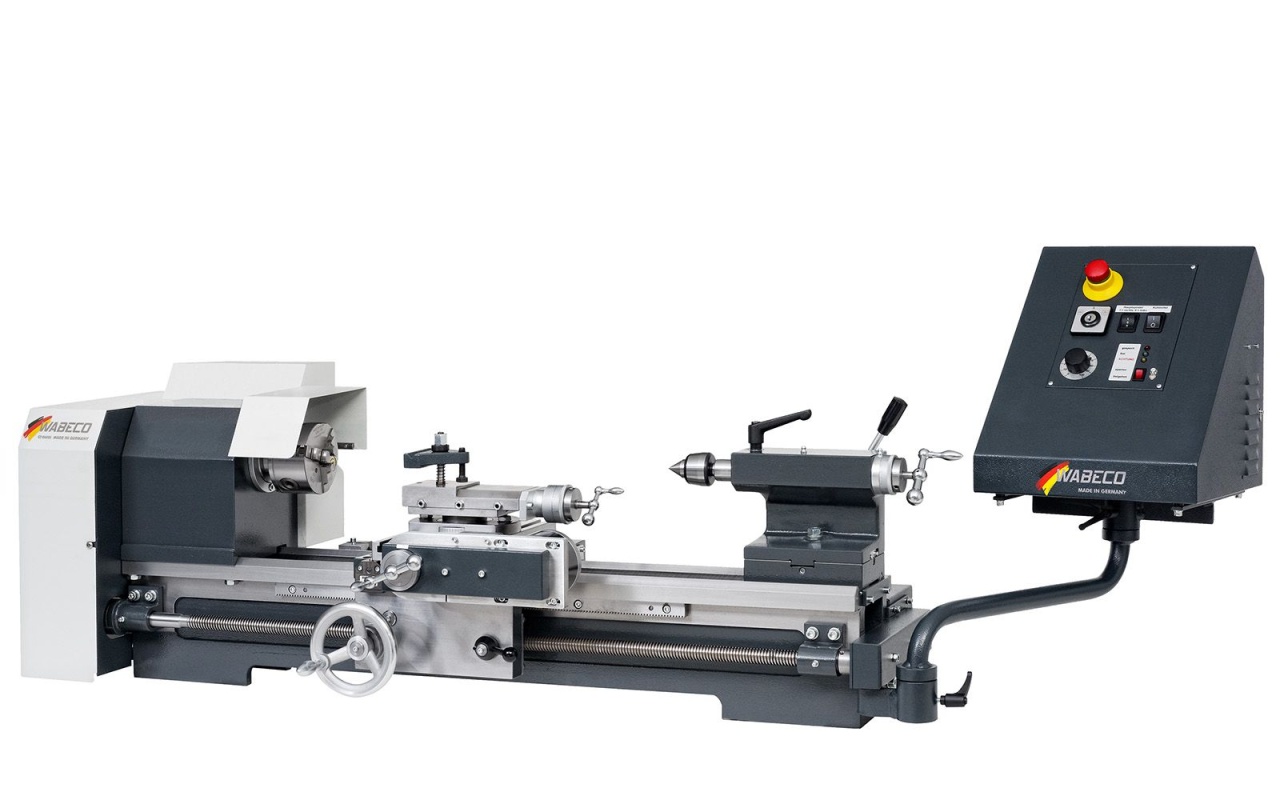

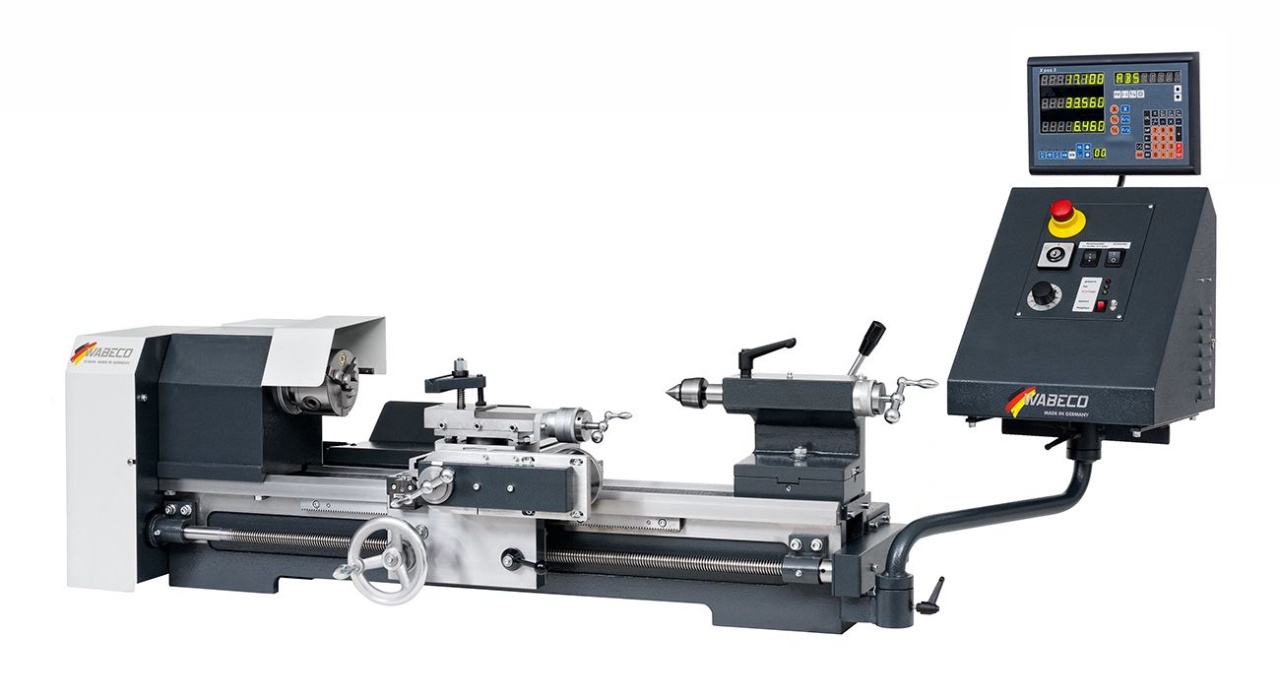

Strung CNC CC-D6000 HS BASIC, WABECO
72.874,00 RON
Plata in 2 pana la 6 rate cu cardul, pentru cardurile acceptate.
Costurile de livrare nu sunt incluse, dar la comenzi peste 350 lei transportul este gratuit.
Descriere
Prezentare pe scurt:
- Controler de bază NCCAD și software de strunjire cu interpolare 2D cu pat prismatic din fontă
- Acționare principală de putere 2,0 kW
- Mandrină de strung cu 3 fălci ˜ 125 mm
- Distanța între centre 600 mm
- Inălțimea centrului 135 mm
Aplicație:
- Pentru utilizare în artizanat, atelier, industrie și educație
Garanție de 2 ani - garanția nu acoperă piesele supuse la uzură
Disponibilitatea pieselor de schimb este garantată și după perioada de garanție
Notă:

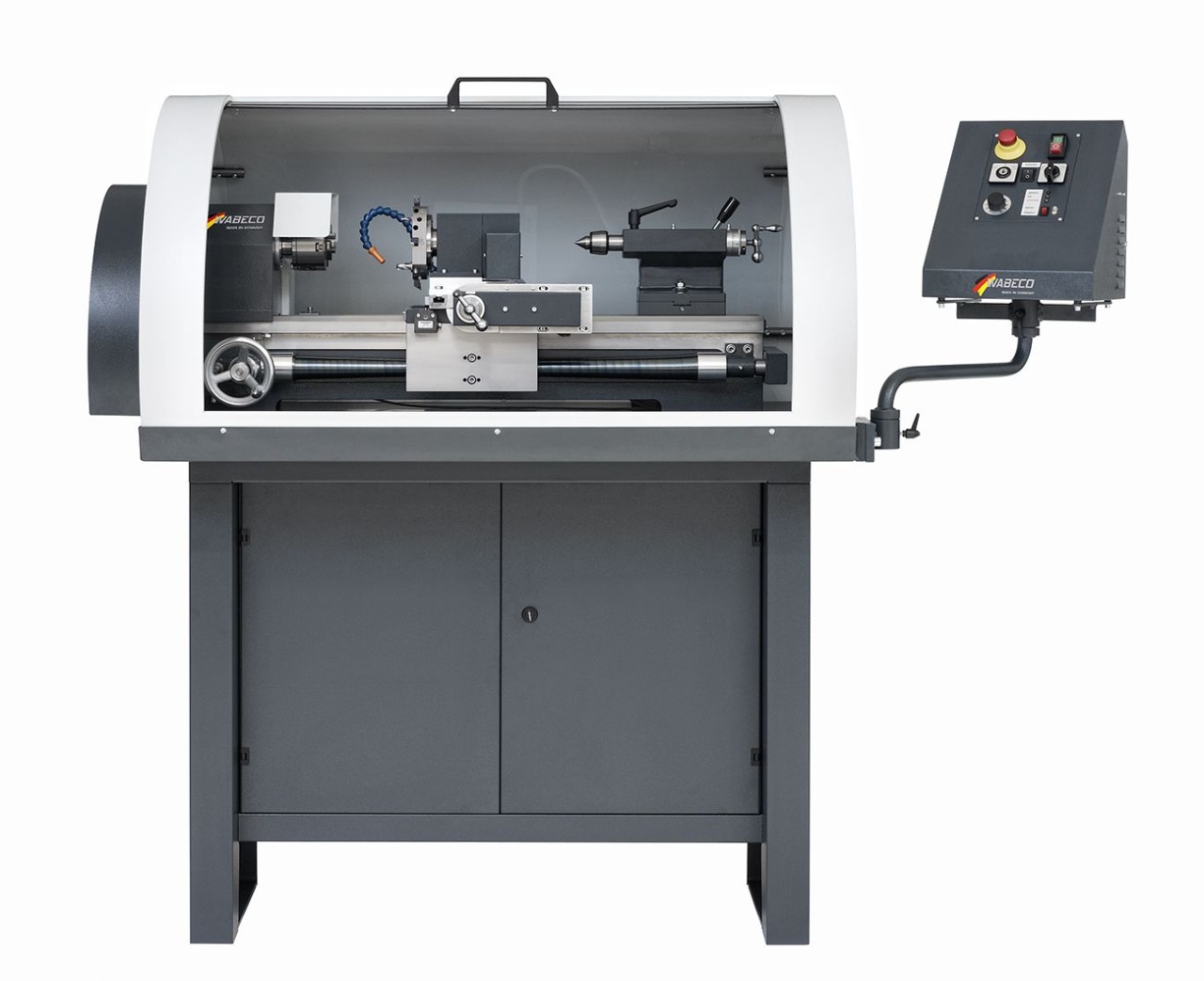

- Modernizarea unui strung manual WABECO cu componente CNC, conectarea unui controler WABECO nccad și a unui PC îl transformă acum într-un strung CNC de înaltă precizie. Pentru a îndeplini cerințele de siguranță standard industriale, acest strung convertit în CNC trebuie instalat într-o cabină de siguranță a mașinii. Vă rugăm să consultați cerințele locale privind standardele de siguranță. Fără o cabină de siguranță a mașinii, un strung CNC nu îndeplinește cerințele din lista CE și poate provoca răniri grave.
Detalii tehnice:
| Prismatic cast iron bed | |
| prismatic cast iron bed made of diagonally ribbed gray cast iron | ● |
| inductively hardened and ground guideways | ● |
| Working range | |
| center distance | 600 mm |
| center height | 135 mm |
| workpiece diameter | max. 270 mm |
| turning Ø above the guideways | 170 mm |
| bed width | 180 mm |
| Machine precision | |
| machine precision according to DIN 8606 | ● |
| true running accuracy of spindle nose | 0.005 mm |
| cylindrical turning to 100 mm cantilevered | 0.01 mm |
| cylindrical turning with a finishing cut to 300 mm between the tips | ± 0.015 mm |
| Main drive motor | |
| frequency-controlled servomotor 230V, 50/60 Hz | 2.5 kW |
| due to high speed suitable for small tools | ● |
| brushless | ● |
| electronically infinitely variable drive | 50 - 5000 rpm |
| main spindle drive, which can be adjusted to a wide cutting speed range via a potentiometer | ● |
| with overload protection | ● |
| dynamic torque throughout the entire speed range | ● |
| high torque even in the lowest speed range | ● |
| Silent running | |
| extremely silent running due to innovative belt drive | ● |
| Drive technology | |
| drive electronics with multiple fault monitoring circuits | ● |
| e.g. turning a steel shaft Ø 50 mm in one infeed | approx. 5 mm |
| Headstock | |
| housing made of grey cast iron | ● |
| V-shaped slot scraped by hands | ● |
| main spindle in 2 adjustable precision DIN tapered roller bearings | ● |
| right-left rotation of the main spindle | ● |
| Main spindle bore | |
| main spindle bore Ø 30 mm | ● |
| with ground taper insert in the main spindle | MT3 |
| Main spindle | |
| according to DIN 6350 | ● |
| main spindle Ø 70 mm | ● |
| Feed screws | |
| trapezoidal thread spindles | ● |
| Lead screw drive | |
| with lead screw drive and change gear quadrant for automatic feed | 0.085 mm/rev |
| tumbler gear for left- and right-hand threads | ● |
| Overload clutch | |
| on the lead screw and the lead screw drive to avoid damage to the feed system | ● |
| Thread cutting (in conventional operation) | |
| change gear set for thread cutting | metric 0.25 - 7.0 mm inch 10 - 40 TPI |
| and for automatic feed | 0.16 mm/rev |
| Tool slide | |
| universally adjustable | ● |
| dovetail guides readjustable free of play | ● |
| reading accuracy of the scale rings | 0.05 mm |
| adjustability of cross slide | 140 mm |
| adjustability of longitudinal slide | 60 mm |
| longitudinal slide can be swiveled through 360° | ● |
| max. height of turning tools | 20 mm |
| cutting scrapers prevent dirt and cuttings entering the guideways | ● |
| Tailstock with quick adjustment | |
| lateral adjustability of tailstock upper part | ± 10 mm |
| tailstock sleeve with inner morse taper MT2 | ● |
| quill adjustable | 65 mm |
| scale ring reading accuracy | 0.1 mm |
| High-performance stepper motors | |
| in X- and Z- axis | ● |
| maintenance-free | ● |
| high feed and acceleration values | ● |
| high holding torque | ● |
| Travel speed (rapid traverse) | |
| in X- and Z-axis | 30 - 500 mm/min |
| Limit switch | |
| in X- and Z-axis | ● |
| mechanical single limit switch | ● |
| Dimensions and weight | |
| machine dimensions without packaging | W1230 x D510 x H470 mm |
| weight without packaging | 172 kg |
