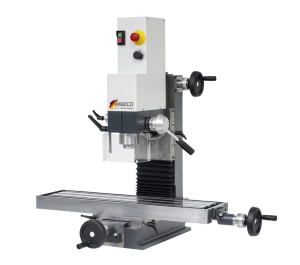

Freza WABECO F 1210 MT2

Name: Freza WABECO F 1210 MT2
Brand: Wabeco
SKU: 11400
Price: 22628.5 RON
Availability: InStock

22.628,50 RON

Plata in 2 pana la 6 rate cu cardul, pentru cardurile acceptate.

Costurile de livrare nu sunt incluse, dar la comenzi peste 350 lei transportul este gratuit.

de la 1.169,14 RON / Luna

Avans pe gustul tau

Cumpara acum, plateste mai tarziu de la 446,61 RON / Luna Detalii aici

Cum te putem ajuta?

Suna-ne: Informatii: 0733/010454, 0751/074013, 0745/477249. Telefon comenzi: 0745/477249 (Luni-Vineri 08.30-16.30)

TRANSPORT GRATUIT

Livrare rapidă curier sau Easybox gratuita peste 350 lei.

GARANTIE

De la producatori de renume.

PLATA IN RATE

Pana la 6 rate fara dobanda.

VINDEM PE SICAP

Avem produsele listate in Sicap.

Descriere

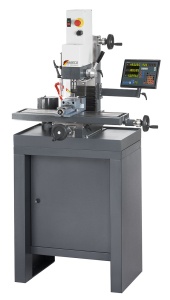

Freza WABECO F 1210 MT2

– garantam precizia pentru ca productia are loc in Germania pe masini de precizie

– fabricata pentru precizie si se emite un raport de test

– cu variator electronic al turatiei, infinit variabil de la 140 - 3000 r.p.m. transmisia este dinamica

– motor puternic cu invertor, 1,4kW, 230 V, 50Hz

– con MT2

– protectie impotriva atingerii axului principal, se indeparteaza usor pentru schimbarea sculelor

– ghidaje reglabile fara joc pe axa Z

– surub de avans fara joc, reglabile cu nut de bronz pentru axa Z

– capul frezei se regleaza pana la 90º ST/DR

– miscare de avans mica

– opritor gaurire

– protectii pentru ghidaje

– fixare exacta a penei pe toata suprafata

– cuplu constant pe toata plaja de turatii

Detalii tehnice

Working range
longitudinal travel X-axis	500 mm
transverse travel Y-axis	150 mm (optional 180 mm)
vertical travel Z-axis	280 mm
drill stroke	55 mm
distance milling table - tool spindle	min. 90 mm max. 370 mm
outreach tool spindle - column	185 mm
Clamping table
clamping table	700 x 180 mm
number of T-slots	3
width of T-slots	12 mm
center distance between T-slots	50 mm
Machine precision
machine precision according to DIN 8615	●
Main drive motor
single-phase series wound motor speed-controlled 230 V, 50/60 Hz	1.4 kW
as direct current model with permanent, closed loop rpm control system	●
electronically infinitely variable drive	140 - 3000 rpm
with overload protection	●
dynamic torque throughout the entire speed range	●
high torque even in the lowest speed range, e.g. for machining hard-to-cut materials	●
Silent running
extremely silent running due to innovative belt drive	●
Drive technology
drive electronics with multiple fault monitoring circuits	●
e.g. milling in steel with a shank cutter Ø 10 mm with one infeed	approx. 10 mm
Milling head

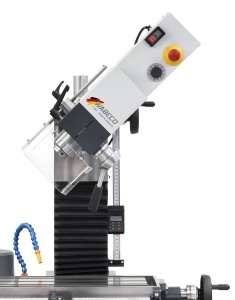

milling head can be swivelled through 90° on both sides (-90° to +90°)	●
angle position easily read off of the large scale	●
vertical positon can be preset by means of a hardened and ground conical index pin	●
protective hood	●
Quill stroke
quill stroke with drilling depth stop	●
form-fit clamping of the quill over the entire lateral surface	●
reading accuracy scale ring - quill stroke	0.1 mm

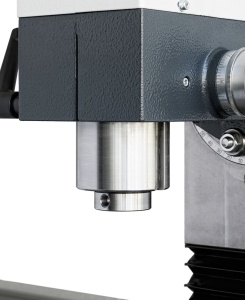

Tool spindle
with re-adjustable anti-friction bearings arranged in a large dimensioned drilling- and milling quill	●
true running accuracy of the tool spindle	0.01 mm
wide toothed belt between motor and tool spindle ensures a slip-free drive and a smooth running	●
Tool holder
MT2 with tightening thread M10	●
Tool clamping and ejecting system
for clamping and ejecting the tools without extra effort	●
Z-column and base plate
made of ribbed gray cast iron	●
Fine feed Z-axis
fine feed in the Z-axis	●
Guides
dovetail guides	●
free of play adjustable in all axes	●
high workpiece accuracy	●
2 folding bellows for guide protection	●
Axes locking device
clean milling surface by fixing the individual axes	●
Feed screws
trapezoidal thread spindles in all axes	●
adjustable by means of adjustable bronze double nuts	●
reading accuracy of the scale rings 0.05 mm	●
Dimensions and weight
machine dimensions without packaging	W900 x D625 x H700 mm
weight without packaging	101 kg
