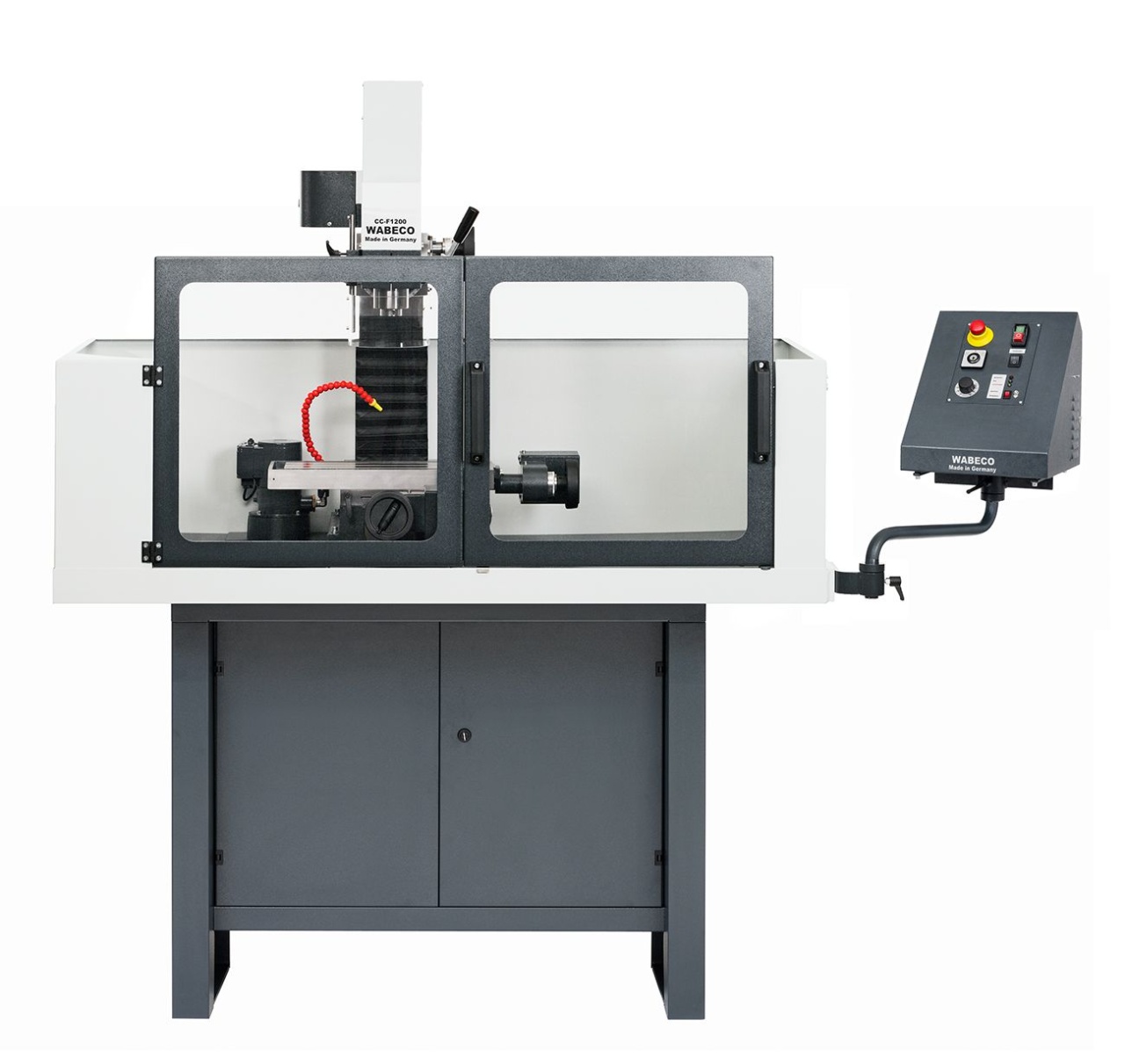

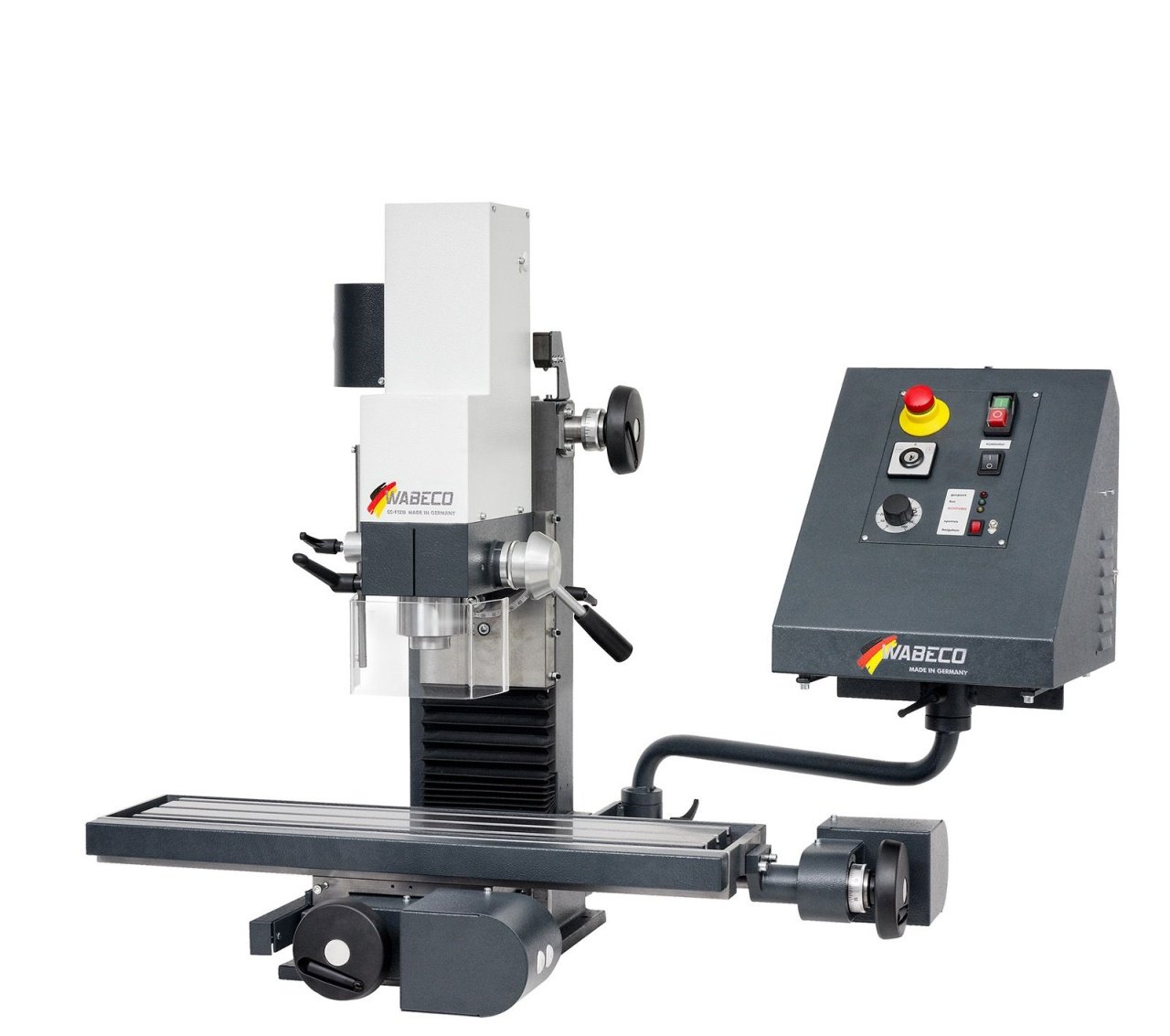

Freza WABECO CNC CC-F 1210E cu soft NCCAD ProfesionaL, WABECO

Name: Freza WABECO CNC CC-F 1210E cu soft NCCAD ProfesionaL, WABECO
Brand: Wabeco
SKU: 1140011
Price: 59162.95 RON
Availability: InStock

59.162,95 RON

Plata in 2 pana la 6 rate cu cardul, pentru cardurile acceptate.

Costurile de livrare nu sunt incluse, dar la comenzi peste 300 lei transportul este gratuit.

de la 3.056,75 RON / Luna

Avans pe gustul tau

Cumpara acum, plateste mai tarziu de la 1.165,12 RON / Luna Detalii aici

Cum te putem ajuta?

Suna-ne: 0733/010454, 0745/477249, 0751/074013 (Luni-Vineri 08.30-16.30)

TRANSPORT GRATUIT

Livrare rapidă curier sau Easybox gratuita peste 300 lei.

GARANTIE

De la producatori de renume.

PLATA IN RATE

Pana la 6 rate fara dobanda.

VINDEM PE SICAP

Avem produsele listate in Sicap.

Descriere

- cu controler NCCAD PROFI și software de frezare

- ghidaje în coadă de rândunică
- suport de scule ISO30
- șuruburi de avans - șuruburi cu bile
- putere de acționare principală 1,4 kW, 140 - 3000 rpm
- cursă longitudinală axa X 500 mm
- cursă transversală axa Y 150 mm
- cursă verticală axa Z 280 mm
- masă de prindere 700x180 mm

Un computer este necesar pentru crearea programului si activare a frezei CNC (Computerele nu fac parte din gama noastra de produse)

Computerul asigura crearea programului, administrarea acestuia si achizitia datelor.

Programul este creat independent de masina de frezat CNC - cu ajutorul softului NCCAD Basic furnizat, programele CNC pot fi produse pe mai multe calculatoare, independent de freza CNC. Asta inseamna ca un nou program poate fi creat pe un calculator in timp ce freza functioneaza. Se mareste astfel productivitatea masinii dumneavostra de frezat cu CNC.

Masinile cu CNC pot fi folosite si in modul manual

Detalii tehnice:

Working range
longitudinal travel X-axis	500 mm
transverse travel Y-axis	150 mm (optional 180 mm)
vertical travel Z-axis	280 mm
drill stroke	55 mm
distance milling table - tool spindle	min. 90 mm max. 370 mm
outreach tool spindle - column	185 mm
Clamping table
clamping table	700 x 180 mm
number of T-slots	3
width of T-slots	12 mm
center distance between T-slots	50 mm
Machine precision
machine precision according to DIN 8615	●
Main drive motor
single-phase series wound motor speed-controlled 230 V, 50/60 Hz	1.4 kW
as direct current model with permanent, closed loop rpm control system	●
electronically infinitely variable drive	140 - 3000 rpm
with overload protection	●
dynamic torque throughout the entire speed range	●
high torque even in the lowest speed range, e.g. for machining hard-to-cut materials	●
Silent running
extremely silent running due to innovative belt drive	●
Drive technology
drive electronics with multiple fault monitoring circuits	●
e.g. milling in steel with a shank cutter Ø 10 mm with one infeed	approx. 10 mm
Milling head
milling head can be swivelled through 90° on both sides (-90° to +90°)	●
angle position easily read off of the large scale	●
vertical positon can be preset by means of a hardened and ground conical index pin	●
protective hood	●
Quill stroke
quill stroke with drilling depth stop	●
form-fit clamping of the quill over the entire lateral surface	●
reading accuracy scale ring - quill stroke	0.1 mm
Tool spindle
with re-adjustable anti-friction bearings arranged in a large dimensioned drilling- and milling quill	●
true running accuracy of the tool spindle	0.01 mm
wide toothed belt between motor and tool spindle ensures a slip-free drive and a smooth running	●
Tool holder
steep taper ISO30 (DIN 2080) with tightening thread M12	●
Tool clamping and ejecting system
for clamping and ejecting the tools without extra effort	●
Z-column and base plate
made of ribbed gray cast iron	●
Fine feed Z-axis
fine feed in the Z-axis	●
Guides
dovetail guides	●
free of play adjustable in all axes	●
high workpiece accuracy	●
2 folding bellows for guide protection	●
Axes locking device
clean milling surface by fixing the individual axes	●
Feed screws
ball screws in all axes	●
wear-free	●
free of play	●
synchronous and up-cut milling	●
reading accuracy of the scale rings 0.05 mm	●
High-performance stepper motors
in X-, Y- and Z-axis	●
maintenance-free	●
high feed and acceleration values	●
high holding torque	●
Travel speed (rapid traverse)
X- and Y-axis mm/min	30 - 1200
Z-axis mm/min	30 - 800
Limit switch
in X- , Y- and Z-axis	●
mechanical single limit switch	●
Dimensions and weight
machine dimensions without packaging	W900 x D625 x H700 mm
weight without packaging	129 kg
