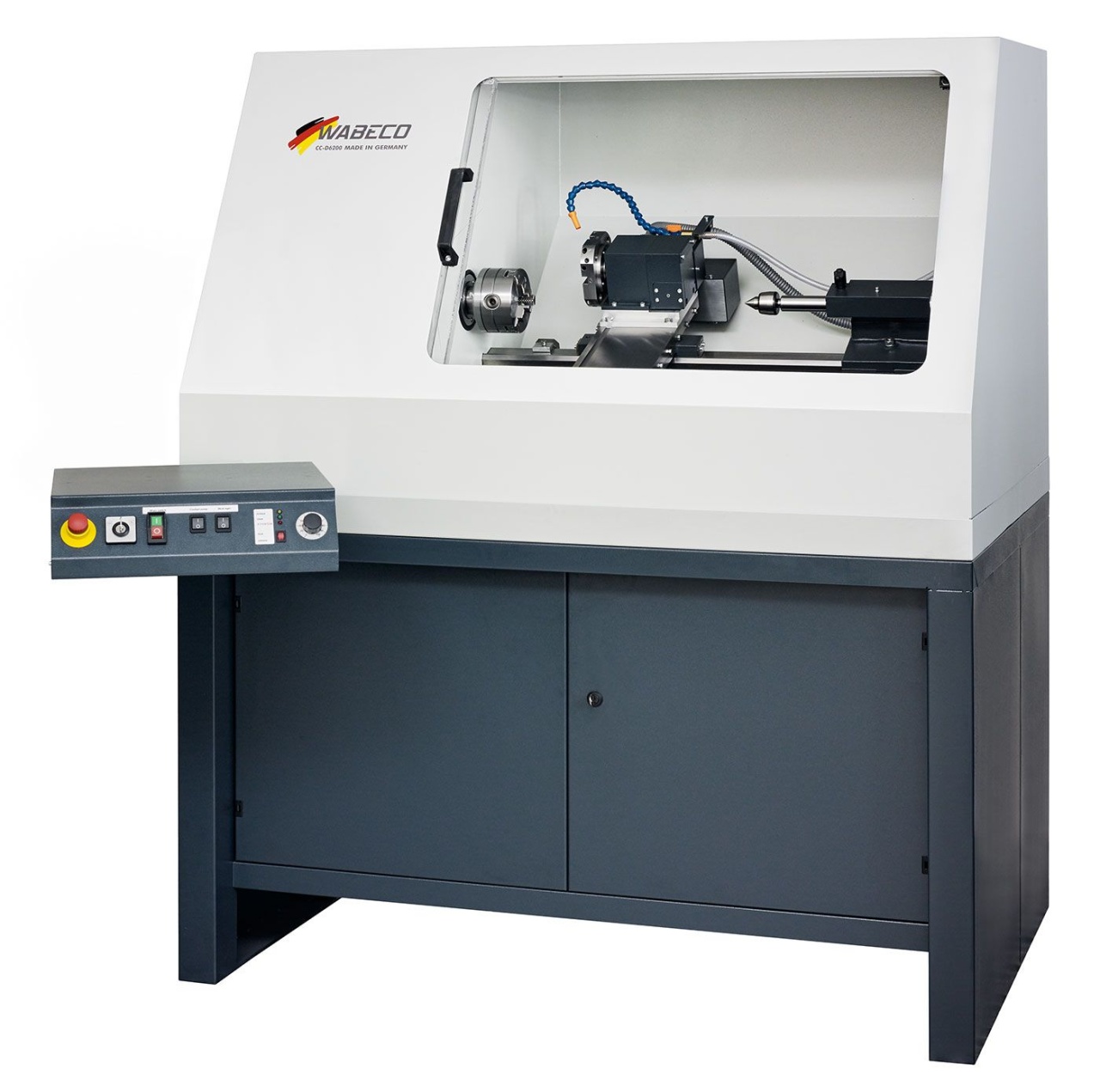

CC-D6800 HS PROFI Strung CNC Wabeco 600mm intre varfuri. 2Kw

Name: CC-D6800 HS PROFI Strung CNC Wabeco 600mm intre varfuri. 2Kw
Brand: Wabeco
SKU: 1060800
Price: 166308.45 RON
Availability: InStock

166.308,45 RON

Plata in 2 pana la 6 rate cu cardul, pentru cardurile acceptate.

Costurile de livrare nu sunt incluse, dar la comenzi peste 300 lei transportul este gratuit.

de la 8.592,60 RON / Luna

Avans pe gustul tau

Cum te putem ajuta?

Suna-ne: 0733/010454, 0745/477249, 0751/074013 (Luni-Vineri 08.30-16.30)

TRANSPORT GRATUIT

Livrare rapidă curier sau Easybox gratuita peste 300 lei.

GARANTIE

De la producatori de renume.

PLATA IN RATE

Pana la 6 rate fara dobanda.

VINDEM PE SICAP

Avem produsele listate in Sicap.

Descriere

Universal cu 3 bacuri de ˜ 125 mm
revolver cu 8 scule
Gaura de trecere prin papusa fixa de ˜ 30 mm
Suruburi cu bila cu acoperiri de protectie incluse.
Cabina de siguranta cu sistem de racire si panou de control.
Tastatura integreaza functii si operatii ale masinii.
Soft profesional NCCAD pentru strunjire.
Dulapul de scule NU ESTE INCLUS!

Un computer este necesar pentru crearea programului si activare a frezei CNC (Computerele nu fac parte din gama noastra de produse)

Computerul asigura crearea programului, administrarea acestuia si achizitia datelor.

Programul este creat independent de masina de frezat CNC - cu ajutorul softului NCCAD Basic furnizat, programele CNC pot fi produse pe mai multe calculatoare, independent de freza CNC. Asta inseamna ca un nou program poate fi creat pe un calculator in timp ce freza functioneaza. Se mareste astfel productivitatea masinii dumneavostra de frezat cu CNC.

Masinile cu CNC pot fi folosite si in modul manual

Detali tehnice:

Slant bed with prismatic cast iron bed
made of diagonally ribbed gray cast iron	●
inductively hardened and ground guideways	●
Working range
center distance	600 mm
center height	135 mm
workpiece diameter	max. 270 mm
turning Ø above the guideways	170 mm
bed width	180 mm
Machine precision
machine precision	according to DIN 8606
true running accuracy of spindle nose	0.005 mm
cylindrical turning to 100 mm cantilevered	0.01 mm
cylindrical turning with a finishing cut to 300 mm between the tips	± 0.015 mm
Main drive motor
frequency-controlled servomotor 230V, 50/60 Hz	2.5 kW
due to high speed suitable for small tools	●
brushless	●
electronically infinitely variable drive	50 - 5000 rpm
main spindle drive, which can be adjusted to a wide cutting speed range via a potentiometer	●
with overload protection	●
dynamic torque throughout the entire speed range	●
high torque even in the lowest speed range	●
Silent running
extremely silent running due to innovative belt drive	●
Drive technology
drive electronics with multiple fault monitoring circuits	●
e.g. turning a steel shaft Ø 50 mm in one infeed	approx. 5 mm
Headstock
housing made of grey cast iron	●
V-shaped slot scraped by hands	●
main spindle in 2 adjustable precision DIN tapered roller bearings	●
Main spindle bore
main spindle bore	Ø 30 mm
with ground taper insert in the main spindle	MT3
Main spindle
according to DIN 6350 - main spindle Ø 70 mm	●
Feed screws
ball screws	●
with free of play ball lock nuts	●
incl. lead screw cover to protect the lead screw against swarf	●
to prevent premature wear and loss of precision	●
Overload clutch
on the lead screw and the lead screw drive to avoid damage to the feed system	●
Thread cutting
thread cutting in CNC mode	●
Tool slide
dovetail guides readjustable free of play	●
cutting scrapers	●
Tailstock with quick adjustment
lateral adjustability of tailstock upper part	± 10 mm
tailstock sleeve	MT2
quill adjustable	65 mm
scale ring reading accuracy	0.1 mm
High-performance stepper motors
maintenance-free	●
high feed and acceleration values	●
high holding torque	●
Travel speed (rapid traverse)
X- and Z-axis	30 - 1000 mm/min
Limit switch X- and Z-axis
mechanical single limit switch	●

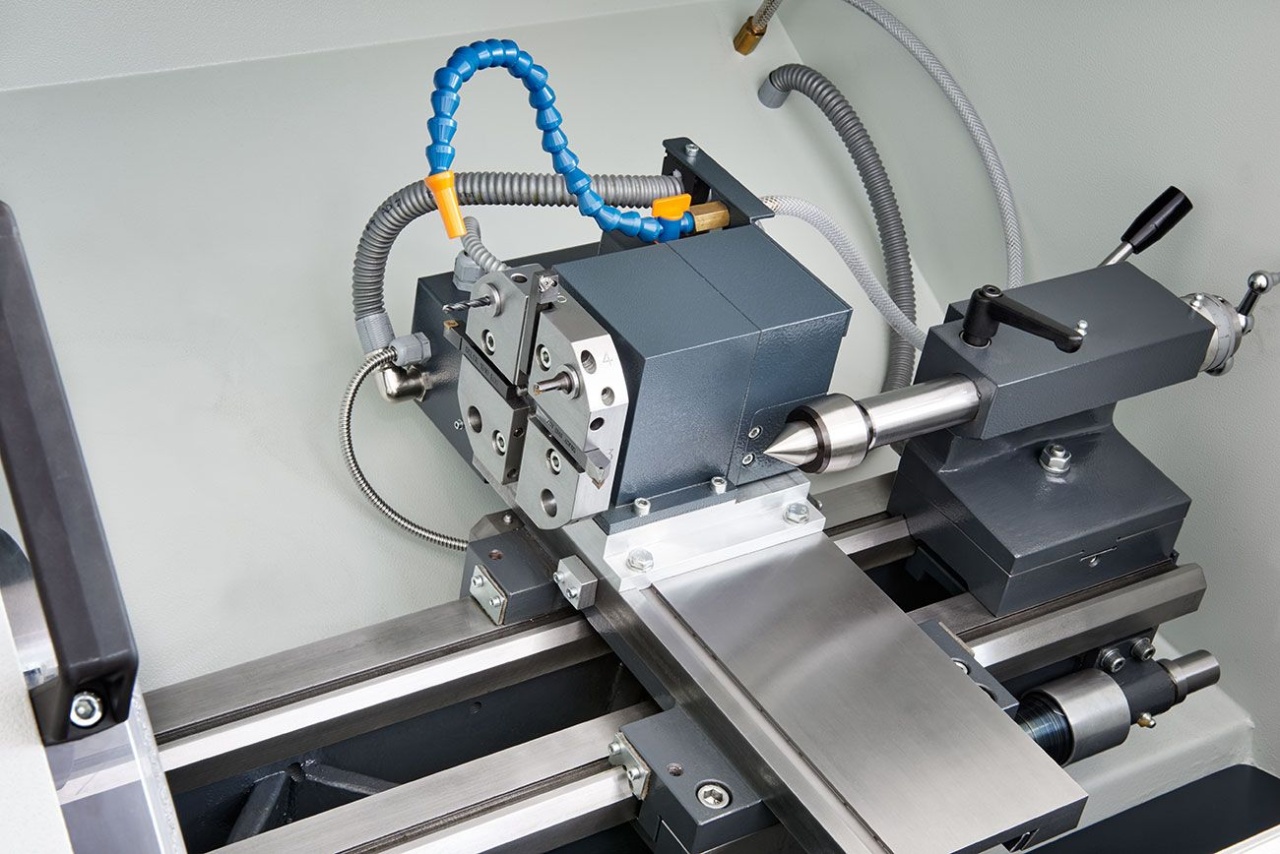

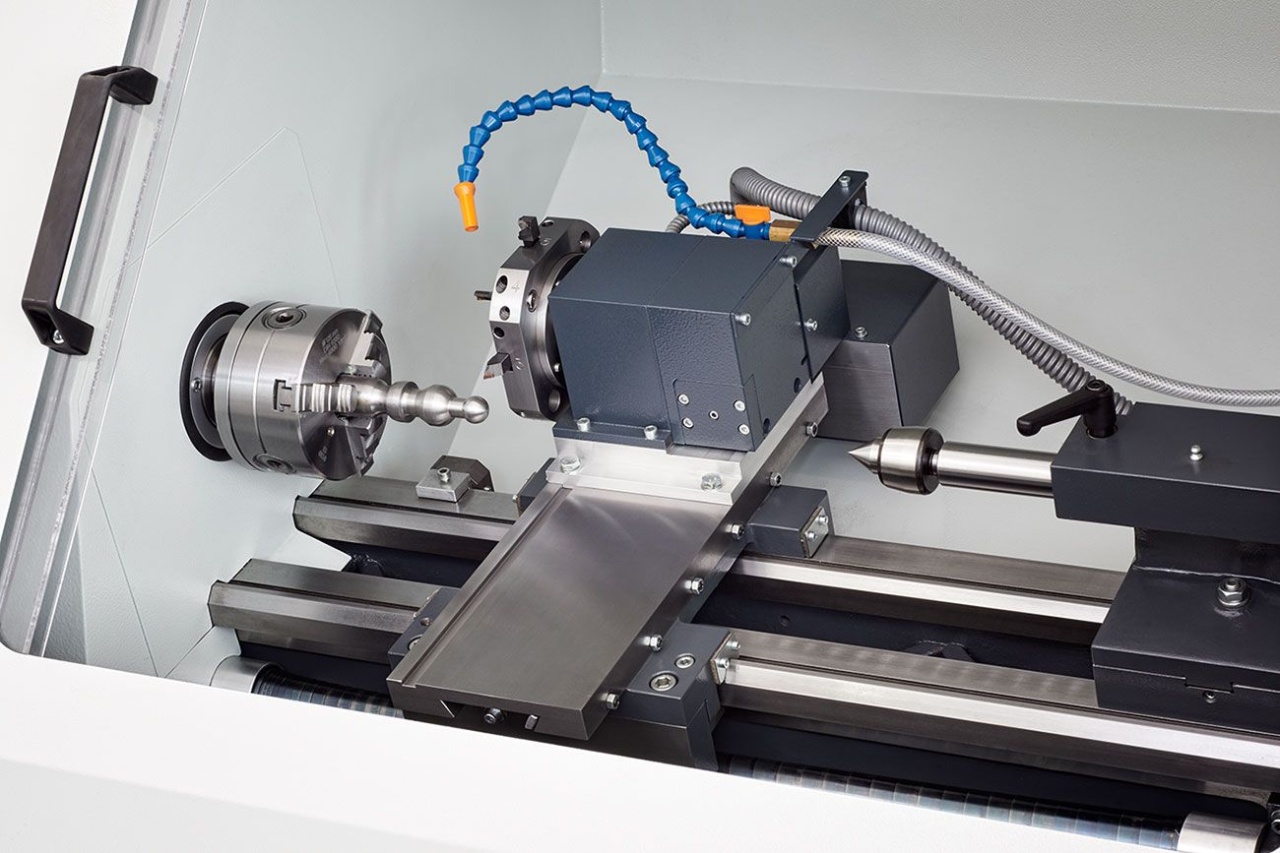

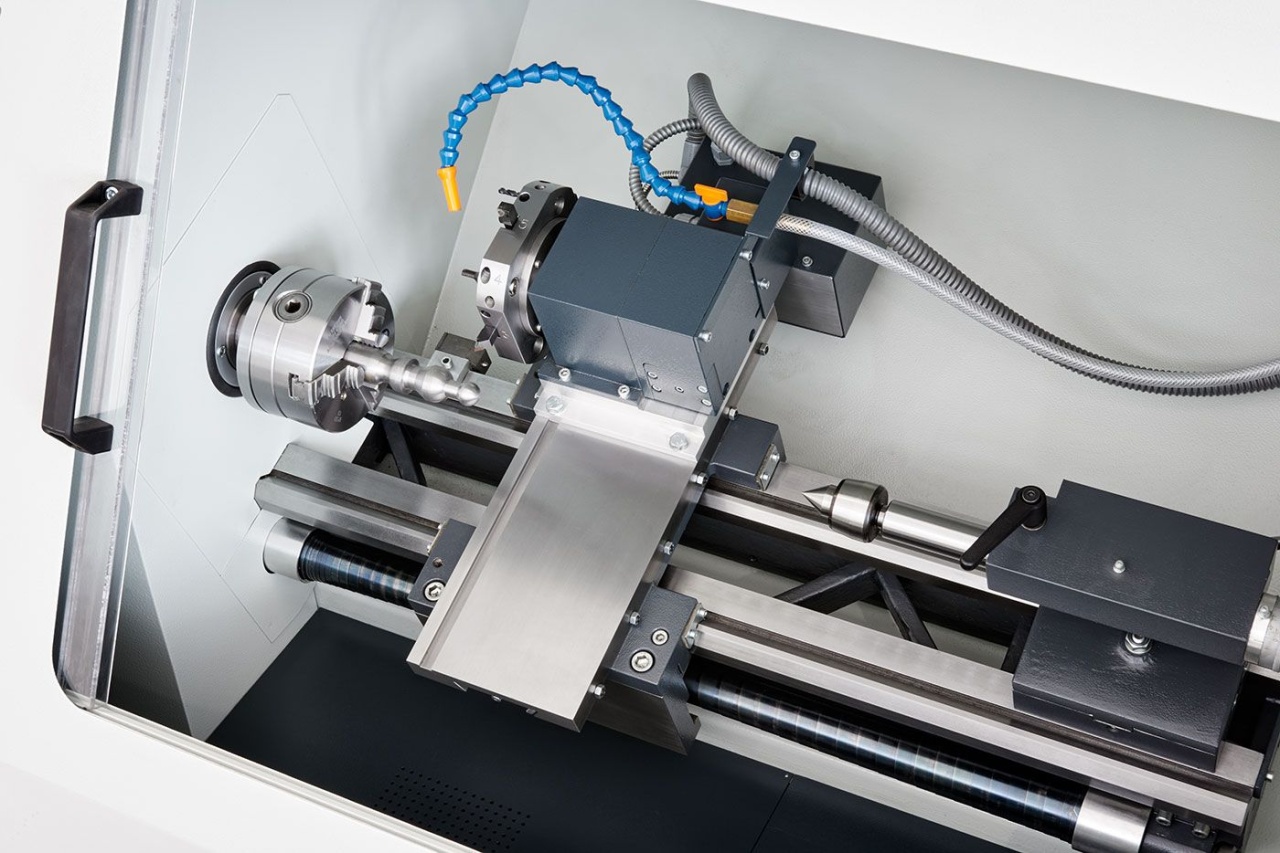

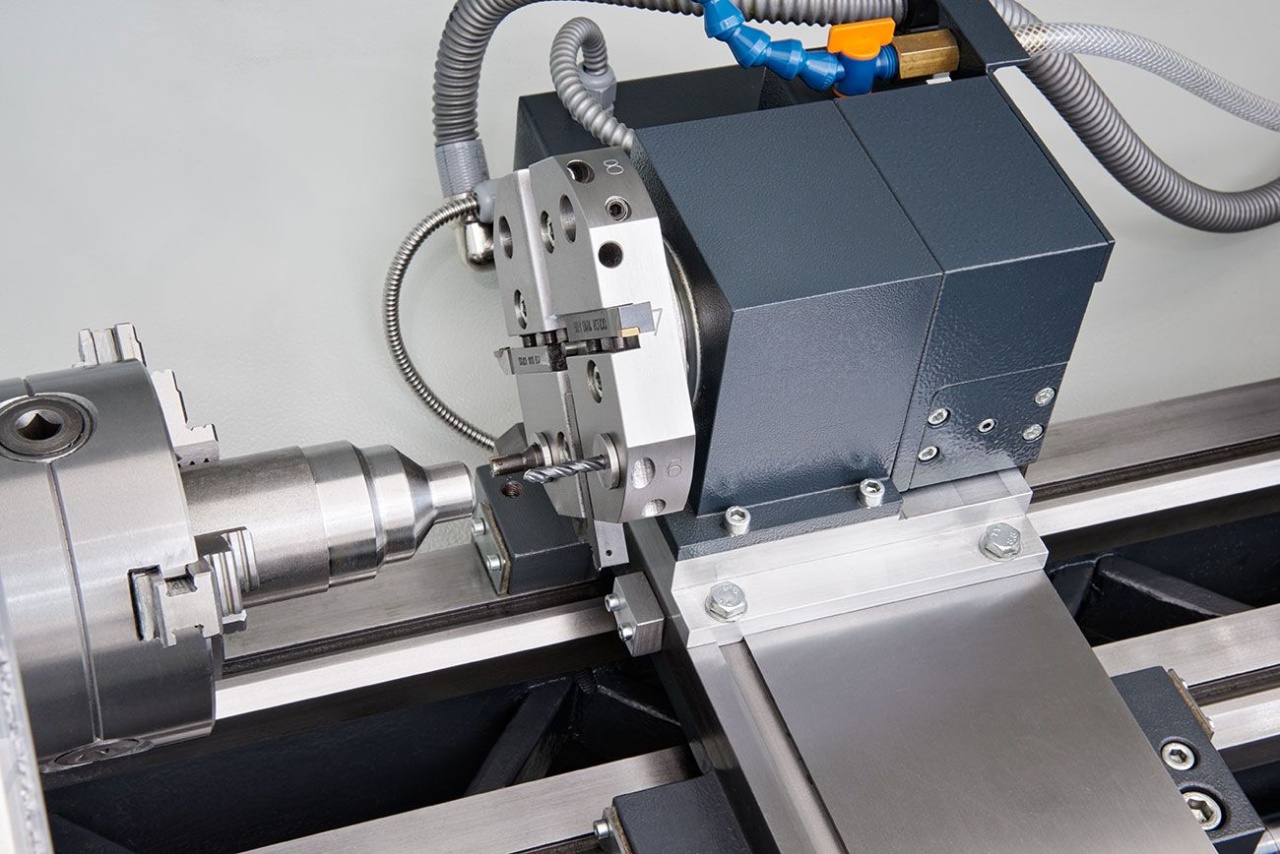

Tool turret
cross section for 4 outside processing tools	10 x 10 mm
location hole for 4 inside processing tools	Ø 16 mm
Machine safety cabin
with integrated coolant unit	●
capacity coolant	27 liters
feed pump	230 V, 50/60 Hz
Dimensions and weight
machine dimensions without packaging	W1420 x D1000 x H900 mm
weight without packaging	352 kg
