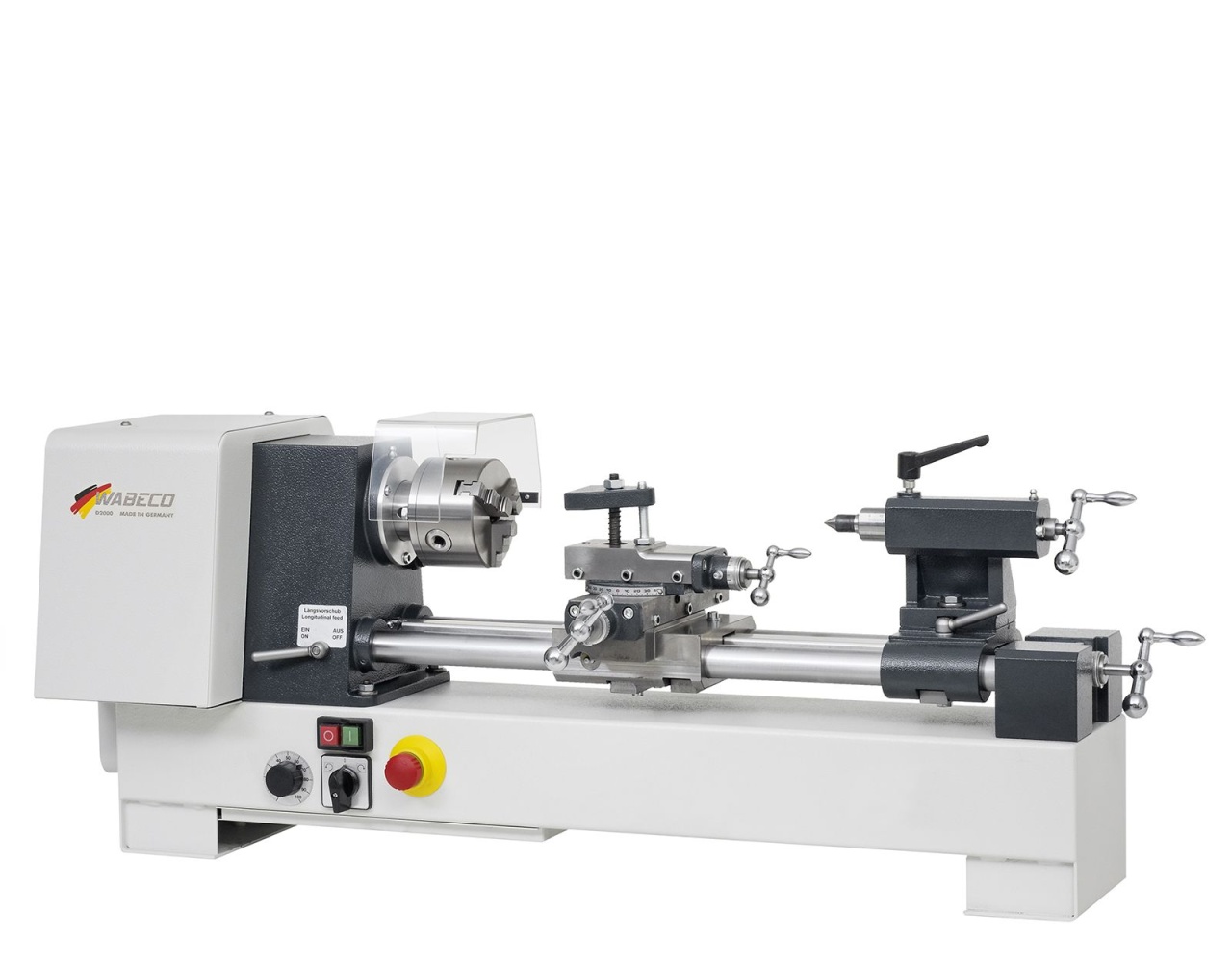

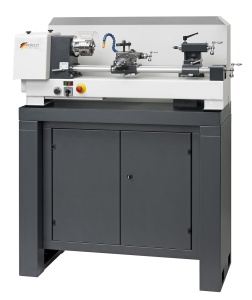

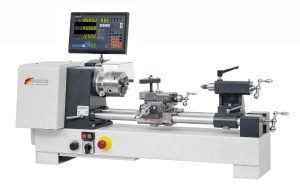

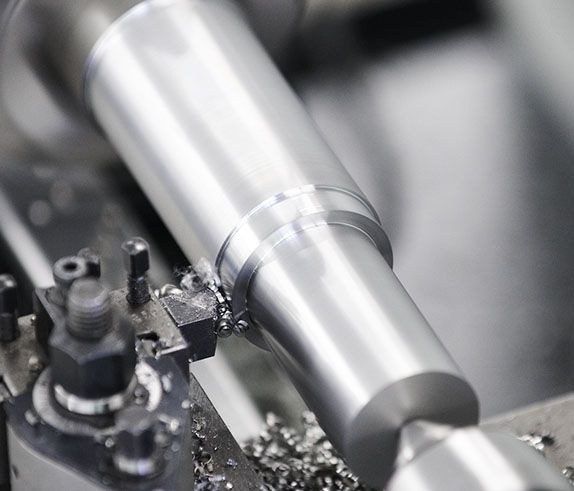

10108 Strung de banc WABECO D2000E

 - Model de bază

 - ghidaje cilindrice din oțel
 - alezaj ax principal Ø 20 mm
 - mandrină de strung cu 3 fălci Ø 100 mm
 - punct mort MT2
 - șuruburi de avans - axuri filetate precise
 - putere de acționare principală 1,4 kW, 30 - 2300 rpm
 - distanță centru 350 mm
 - înălțime centru 110 mm

Date tehnice:

Steel cylindrical guideways
precisely ground cylindrical columns made from solid material	●
made of highest quality steel	●
high rigidity	●
optimal swarf waste	●
Working range
center distance	350 mm
center height	110 mm
turning Ø above cross slide	126 mm
turning Ø above the guideways	210 mm
Machine precision
machine precision according to DIN 8606	●
true running accuracy of spindle nose	0.005 mm
cylindrical turning to 100 mm cantilevered	0.01 mm
cylindrical turning with a finishing cut to 300 mm between the tips	± 0.015 mm
Main drive motor
single-phase series-wound motor speed controlled 230V, 50/60 Hz	1.4 kW
as direct current model with permanent, closed loop rpm control system	●
electronically infinitely variable drive	30 - 2300 rpm
main spindle drive, which can be adjusted to a wide cutting speed range via a potentiometer	●
with overload protection	●
dynamic torque throughout the entire speed range	●
high torque even in the lowest speed range	●
Silent running
extremely silent running due to innovative belt drive	●
Drive technology
drive electronics with multiple fault monitoring circuits	●

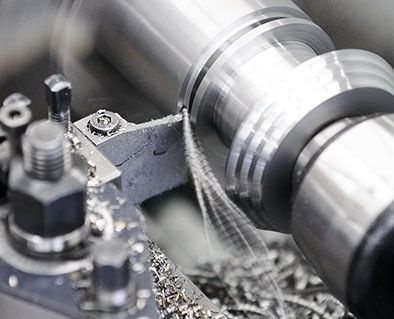

e.g. turning a steel shaft Ø 50 mm in one infeed	approx. 5 mm
Headstock
main spindle in 2 adjustable precision DIN tapered roller bearings	●
right-left rotation of the main spindle	●
intermediate gear between main spindle and drive	●
Main spindle bore
main spindle bore Ø 20 mm	●
Main spindle
according to DIN 6350	●
main spindle Ø 70 mm	●
Feed screws
precise threaded spindles	●
Lead screw drive
with lead screw drive and change gear quadrant for automatic feed	0.085 mm/rev
Overload clutch
on the lead screw and the lead screw drive to avoid damage to the feed system	●

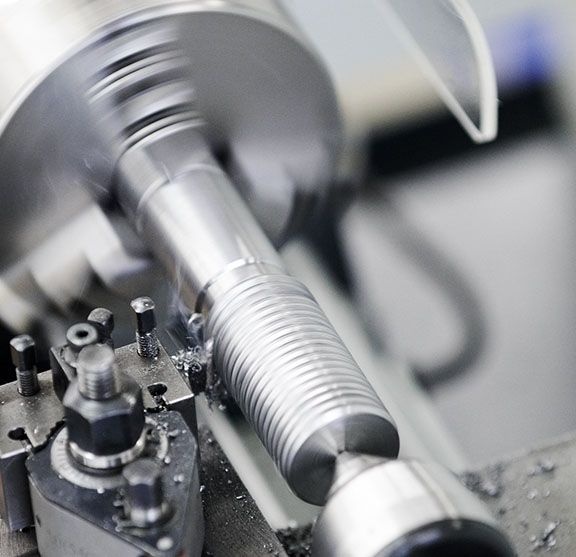

Thread cutting prepared
change gear set	optional
change gear set for thread cutting	metric 0.25 - 6.0 mm inch 10 - 36 TPI
and for automatic feed	0.16 mm/rev

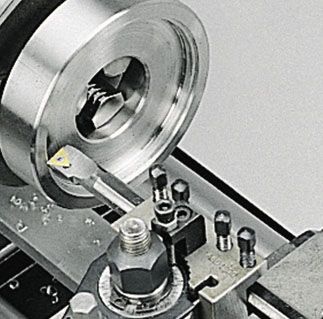

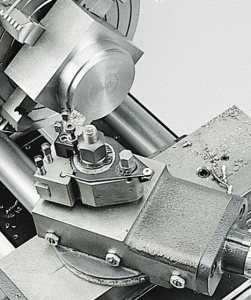

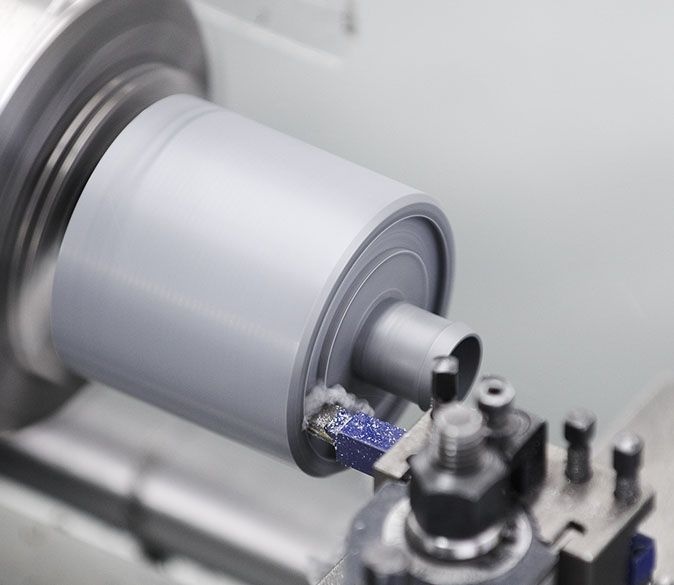

Tool slide
universally adjustable	●
dovetail guides readjustable free of play	●
reading accuracy of the scale rings	0.05 mm
adjustability of cross slide	110 mm
adjustability of longitudinal slide	58 mm
longitudinal slide can be swiveled through 360°	●
max. height of turning tools	20 mm
cutting scrapers prevent dirt and cuttings entering the guideways	●
Tailstock with quick adjustment
lateral adjustability of tailstock upper part	± 10 mm
tailstock sleeve with inner morse taper MT2	●
quill adjustable	65 mm

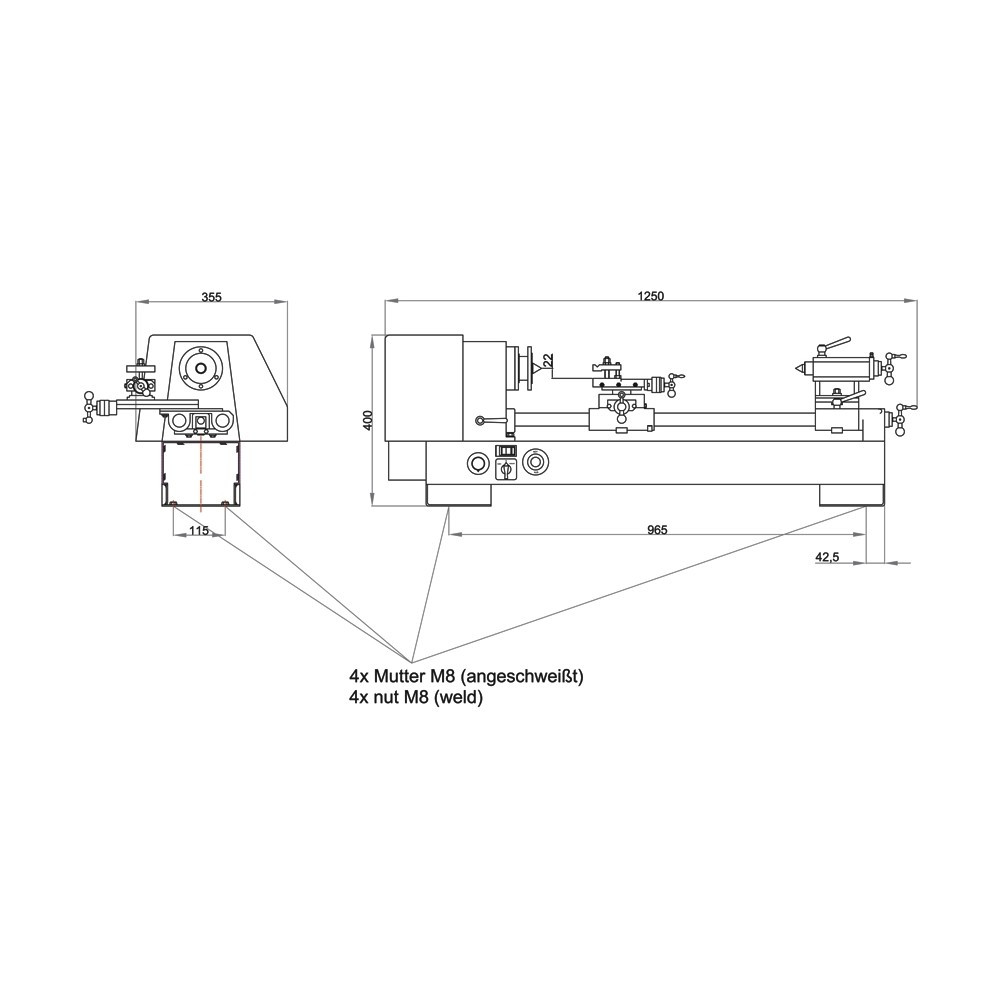

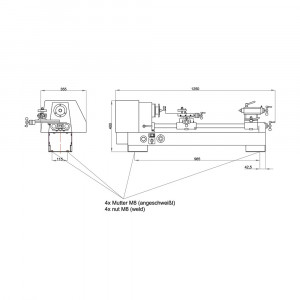

Dimensions and weight
machine dimensions without packaging	W1050 x D410 x H420 mm
weight without packaging	59 kg
